Husqvarna YTH22V46XLS 46" Briggs And Stratton 656cc 960430134 Riding Lawn Mower w/ Hydrostatic Drive 2012

Availability: Out of stock

Retail Price $2,199.00

Source Savings Discount: -$150.00

Mower Source Price $2,049.00





  • Tax-Free Guarantee
  • Free Shipping

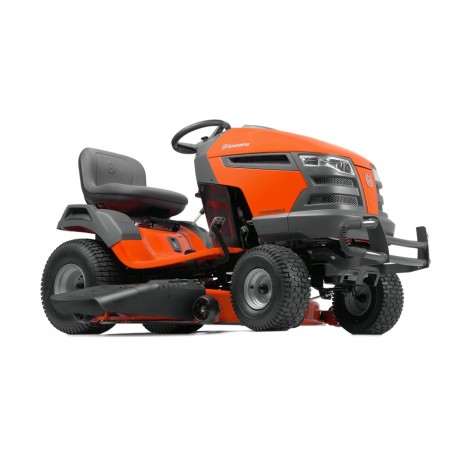

Husqvarna YTH22V46XLS 46" Briggs And Stratton 656cc 960430134 Riding Lawn Mower w/ Hydrostatic Drive 2012

More Views

  • Husqvarna YTH22V46XLS 46" Briggs And Stratton 656cc 960430134 Riding Lawn Mower w/ Hydrostatic Drive 2012

Product Description

We developed our LS series yard tractors with the discriminating landowner in mind. Engineered for added durability, comfort, style and precision, our LS series yard tractors all feature fabricated decks (except XLS) and a heavy-duty chassis. The efficient, integrated washout port and optional mulch kit make these models ideal for demanding and extensive use. Three of our models feature a locking rear differential for increased traction while cutting wet grass or on slopes.

Features
Specifications
Reviews
Shipping

Endurance V-Twin Engine- Endurance V-Twin Engine Powered by Briggs and Stratton, this engine features premium air filtration, chrome plated valves, super finished bearing surfaces, and an oversized cooling fan for extreme durability and superior performance.

Hydrostatic transmission with locking differential- Hydrostatic transmission with locking differential Features a hydrostatic transmission that produces a smooth, variable forward and reverse speed and a pedal operated locking rear differential for increased traction while cutting on slopes or wet grass.

Electric Blade Engagement- Electric Blade Engagement Easy engagement of cutting blade/s; simply pull the switch on the control panel.

Step-through- Step-through Ensures comfortable and easy mounting and dismounting.

Fender-mounted cutting height adjustment- Fender-mounted cutting height adjustment Easy accessible cutting height adjustment for improved ergonomics. The spring-assisted cutting deck makes adjustment easier.

Ergonomic steering wheel- Ergonomic steering wheel Comfortable steering wheel, angled for optimal driver’s position.

Reinforced Deck- Reinforced Deck Deck is reinforced with 14 gauge welded steel tubing for added durability on the trim side.

Air Induction Mowing Technology- Air Induction Mowing Technology Air is drawn from the top and bottom of the deck, improving grass lift and delivering a superior cut.

Engine
Engine manufacturer- Briggs & Stratton
Engine name- Endurance Series
Power- 22 hp
Cylinder displacement- 656 cc
Cylinders- 2
Engine cooling- Air
Battery-12 V 28 Ah
Fuel Type- Gasoline
Fuel tank volume (with reserve)- 3.0 gal.
Fuel tank location- Rear
Engine lubrication type- Pressure with Oilfilter
Oil filter- Yes

Drive system
Transmission type- Hydrostatic with rear locking differential
Transmission manufacturer- Tuff Torq
Drive method- Pedal-operated
Speed- forward, min-max 0-5.5 mph
Speed- reverse, min-max 0-2.4 mph

Cutting deck
Cutting width- 46 inch
Cutting deck type- Stamped
Cutting deck material- Steel
Cutting methods- Collect/Mulch/Side ejection
Cutting height, min-max (approximate)- 1.5 - 4 inch
Cutting height adjustment- Notch
Cutting height steps- 6
Cutting height adjuster- Fender-mounted
Blade engagement- Electric clutch
Blades- 2
Blade type- Hi Performance
Anti-scalp wheels- 4
Powder-coated cutting deck- Yes
Belt tension release- Yes
Greasable mandrels- Yes
Deck Wash Port- Yes

Other
Seat back height- High
Seat material- Vinyl
Steering wheel type- Deluxe Overmolded
Step-through chassis- Yes
Cast iron front axle- Yes
Front-End Protection- Brush Guard Style Bumper
Headlights- Yes
Hour meter- Yes

Dimensions
Tire- size, front 15x6-6"
Tire- size, rear 20x8-8"
Turning radius- min 16 "
Base machine- length 69.25 inch
Base machine- width (chute down) 56.80 inch
Base machine- width (chute up) 48 inch
Base machine- height 41.40 inch

Warranty
Homeowner Warranty 3 Year Limited / 5 Year Chassis and Axle
